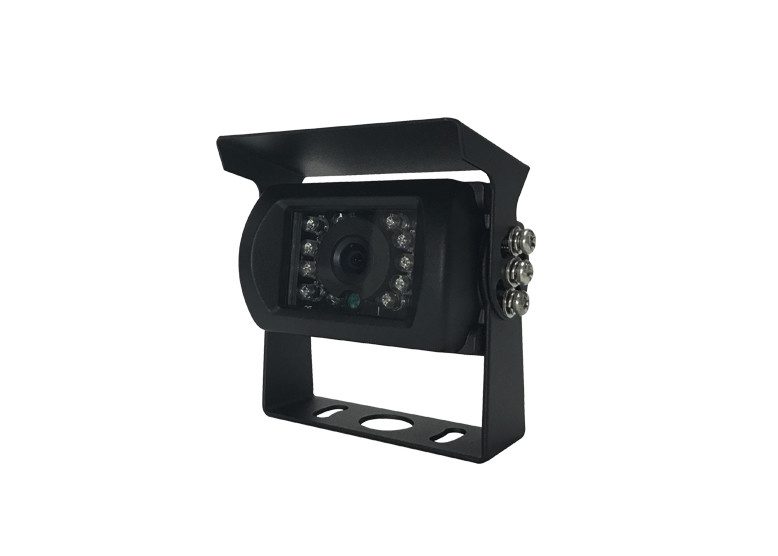

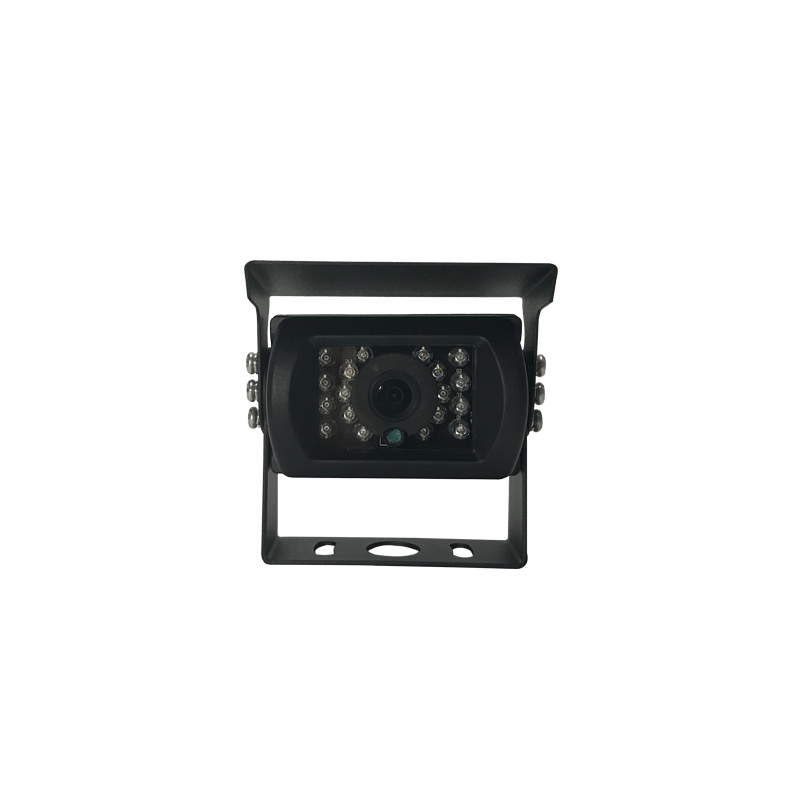

IP68 Wide Angle Bus Truck backup front side camera for Vehicle Mobile Surveillance system
Main Features
1. Horizontal Resolution: CCD 700TVL/600TVL, AHD 720P/960P/1080P
2. Water Resistance: IP68
3. Suitable for any vehicle, like truck, van, bus, ship
4. Waterproof and can be installed on your license plate
5. Mirror / Normal image Adjustment (depending on the chips)
6. Good night vision
Specifications
| ITEM | Feature |
| Image device | Sharp CCD |
| TV system | PAL/NTSC |
| Effective pixels | PAL=704 x 576, NTSC=712 x 486 |
| Sensing area | 5.78 x 4.19, 4.69 x 3.54mm |
| Resolution | 420TV lines |
| Waterproof | IP68 |
| Minimum illumination | 0.1 - 0.5 lux |
| Lens angle | 170° |
| Distance label function | optional |
| Description |
| Power supply: 12V DC |
| Operating temperature: -10°C to 46°C, 95% RH (maximum) |
| Storage temperature: -30°C to 60°C, 95% RH (maximum) |
Chips Available for Option
- Sony CCD 480TVL
- Sony CCD 600TVL
- Sony CCD 700TVL
- AHD 720P 1.0MP
- AHD 960P 1.3MP
- HD 1080P 2.0MP
Connetor Available for Option
- 4Pin Aviation connector
- DC+RCA connector
- CCTV security BNC connector
Quality Control
1) All our products must be 100% pre-tested before shipping by our professional QC Team
2) Items have 18 months warranty since the date receving the goods.
3) Aging time 48 hours to ensure stable quality
4) Life time tech support
5) Use a metal shell, color of the lacquer that bake, better resistance to rust, prolong life.
6) Super Waterproof Design: We adopt special sealing method, and work more than 20 hours of bubber water test process,
put an end to any water infiltration.
Packing Detail
1. Neutral Box.
2. Your Logo is also Welcomed.
