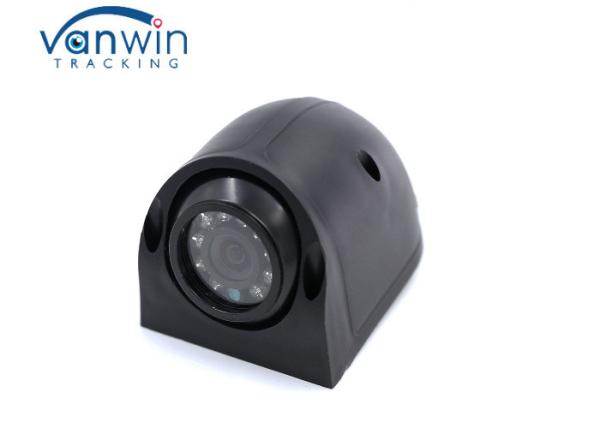

700TV Lines Tractor 1080P 2.8MM Lens Bus Surveillance Night Vision Car Camera with 4pin

Brand Name : Vanwin Tracking

Model Number : VW-228

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 5 pcs

Price : negotiated

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5,000pcs per month

Delivery Time : 2-3 days for samples, 5-10 days for large orders

Packaging Details : Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs

Type : Night Vision car camera

Resolution : 720P / 960P / 1080P

Power : DC12 or 24V

TV system : PAL or NTSC

Camera Lens : 2.1MM/ 2.8MM / 3.6MM

Connector : BNC or RCA or 4pin

Feature : waterproof, dustproof

Angle Lens : Can be adjusted

Viewing angle : 120 degree

Warranty : 12 Months

Contact Now

700TV Lines Tractor 1080P 2.8MM Lens Bus Surveillance Night Vision Car Camera with 4pin

The night vision car camera is our private mold. It's hot selling with wide angle, adjustable lens, strong quality which can be used for left and right side for many vehicles, like bus, truck, van and ect.

  1. Side / Rear View Camera for Heavy-duty or Bus
  2. Analog 600TVL/700TVL/800TVL or AHD 720P/960P/1080P for options
  3. 10 PCS Infrared LED lights
  4. CE,FCC,RoHS Certificates
  5. Private Mold
  6. Angle can be adjusted
  7. Wide horizontal angle degree
  8. BNC / 4PIN / RCA connector for Option

Technical Specification

AHD Cameras:VW-208
Technology infrared
Sensor AHD 1080P
Shape Streamlined camera
Types side view camera
Waterproof IP67
Audio Optional audio
Lens 2.1MM/ 2.8MM / 3.6MM
IR LED 10PCS
Power DC12V/24V
Color Black
Connector 4 PIN connector or RCA connector
Material aluminium alloy
Effective Pixels 720P/960P/1080P
Operating Temperature -25℃~70℃
Warranty 1 Years
1/3 AHD 1080P
Chip Technical Parameters


Sensor

 1/2.9" IMX323 2.0MP

Video

Out

1CH BNC AHD

output, Support

TVI/CVI/CVBS Mode


System

 PAL/NTSC WDR auto
Resolution 1920 (H)×1080(V) SNR >45db

Min.

illumination

 0.01Lux full color

White

Belance

 AWB

Electronic

Shutter

 1/25s~1/100,000s DR 76db

Video

Standard

 AHD

Advanced

Function

 2D_DNR

Frame

Rate

 1920×1080@25 fps;
1920×1080@30 fps;

Working

Environment

-25℃~+70℃,

Humidity 95%
Lens 2.1/2.8/3.6

Power

supply

 DC 12V +/-15%,

Product details

700TV Lines Tractor 1080P 2.8MM Lens Bus Surveillance Night Vision Car Camera with 4pin

Installation Cases

700TV Lines Tractor 1080P 2.8MM Lens Bus Surveillance Night Vision Car Camera with 4pin
