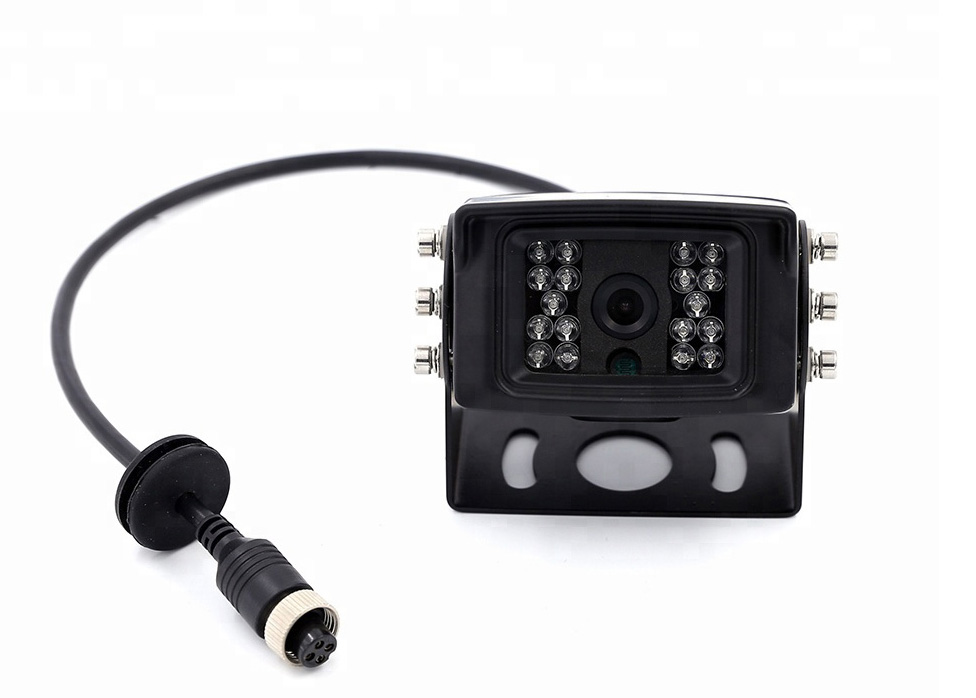

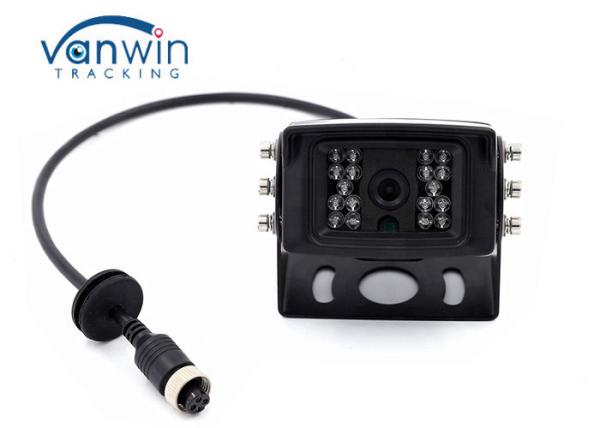

Bus Waterproof Front Side Back View 1080P Car Cameras with 4pin, Digital WDR
VW-385 is one of our hot selling model which used for ligger vehicle like truck, bus, van as the reversing/front camera.
It can support Analog CCD 600TVL/700TVL or AHD 720P/960P/1080P for option with 4pin/BNC/RCA connector.
There is also different lens and chips to meet different customers' requirement.
Main Specifications
| | Specifications: |
| Model | FH53-V1 |
| Parameters | oaxial surveilance camera mo |
| | 2MP 4-in-1 coaxial surveillance camera module |
| Sensor | 1/2.9＂GC2053 |
| ISP Model | FH8536H |
| Image System | PAL/NTSC |
| Resolution | 1920(H)x1080(V) |
| Min. illumination | 0.01Lux@(F1.2,AGC ON),0LUX with IR |
| Shutter | AUTO |
| Night Mode | Outside control(default)/Auto/W&B/ Color |
| Synchronization | Inter synchronization |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Video Output | AHD/TVI/CVI/CVBS for option |
| Exposure | Brightness/Exposure mode/gain |
| White Balance | AWB/MWB |
| Night Mode | IR/Inner auto/color/W&B |
| Video Setting | Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital WDR |
| Language | ENGLISH/中 /ESPANOL/FRANCAIS/繁体中/本語/Pyccknn/ITALIANO/EAAHNIKA/POLSKI//Portugues/한국어. |
| Working enviroment | -20℃ to 60℃, Humidity 95% |
| Voltage | DC12V(±20%) - 65MA |
Our advantages
We are different from other suppliers.Welcome you to test and compare.
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----
Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)
----QA Test(IR with function Test )----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much.
Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
Our 1080P Truck reverse camera main features for 1080P chip:
- Adopt 1080P 2.0MP San CMOS, can capture moving images
- Support AHD / TVI / CVI coaxial HD output, with clear and delicate image
- Illumination 0.01Lux @ (F1.2, AGC ON), 0LUX with IR
- Support IR-CUT switch, CDS external control, realize day and night monitoring
- Support OSD menu control, suitable for users to define settings
- Support Digital Wide Dynamic
- Adapt to digital noise reduction, 3D-DNR, 2D-DNR
- Support UTC function
- Video 6KV lightning protection, power capacitor design
- Support DC 6-15V wide voltage supply
- 32x32/38x38(mm)
