1080P Waterproof Bus Surveillance Camera Front View With Adjustable Bracket For DVR MDVR

Brand Name : Vanwin Tracking

Model Number : VW-322A

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 5pcs

Price : negotiated

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 5,000pcs per month; Private Mould HD CCD 700TV line / 960P AHD Front side View Bus / Truck cameras, Waterproof

Delivery Time : 2-3 days for samples, 5-10 days for large orders

Packaging Details : Neutral carton box package by default

Type : Bus / Truck front cameras

Sensor : 1/3 Sharp Sony car camera

Voltage : DC12 / DC 24V

Waterproof : IP68

TV system : PAL or NTSC

Technology : Infrared,AHD

Connector : 4 pin aviation, RCA, BNC connector

Lens : 3.6mm,2.8mm,2.1mm Fixed Lens

Resolution : 600TVL/700TVL; AHD 720P / 960P / 1080P

Application : For Trailer / Bus / Truck / Heavy Duty

IR Light : 12 PCS

Horizontal Angel : 95-130 degree

Contact Now

Private Mold 1080P Waterproof Mobile Vehicle Truck Camera with Adjustable Bracket for DVR/MDVR


This is front view camera for heavy duty. It's viewing angle can be easily adjusted bracket to mount in a variety of different ways. Normal and mirror image is switching. Camera comes included with 4P connector, BNC or 6P connector for IP camera

.

Main Features:

  1. Bus/Truck front/ side view Camera
  2. High resolution 700TVL/600TVL, AHD 720P/960P/1080P for Option
  3. Waterproof, IP67, 10 IR leds(It's working well even without IR lights)
  4. Vandal-proof housing.
  5. With bracket for option

It can support Analog CCD 600/700TVL or AHD 720P/960P/1080P OR IP.

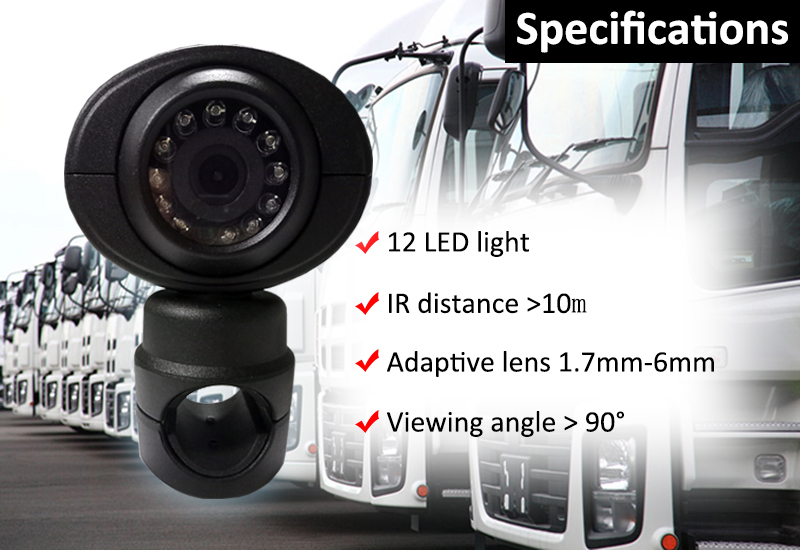

Technical parameters:

mage Sensor 1/3" PC1099 CMOS 1/4" H62 CMOS 1/3" H65 CMOS 1/2.9" Sony IMX323 CMOS 1/2.9" Sony IMX307 CMOS
Signal System PAL / NTSC
Image Resolution 900TVL 1.0MP 1.3MP 2.4MP 2.4MP
Picture Pixels 962(H)*576(V) 1280(H)*720(V) 1280(H)*960(V) 1920(H)*1080(V) 1920(H)*1080(V)
Video Frame Rate / 720p@25fps or 30fps 960p@25fps or 30fps 1080p@25fps or 30fps 1080p@25fps or 30fps
Video Output CVBS: 1.0Vp-p, 75Ω AHD (TVI or CVI is optional)
Transmission Distance / More than 500m via 75-3 coaxial cable
Minimum Illumination Color: 0.1Lux, B/W: 0.01Lux, 0Lux (IR ON) Color: 0.1Lux, B/W: 0.01Lux, 0Lux (IR ON) Color: 0.1Lux, B/W: 0.01Lux, 0Lux (IR ON) Color: 0.01Lux, B/W: 0.001Lux, 0Lux (IR ON) Color: 0.001Lux, B/W: 0.0001Lux, 0Lux (IR ON)
Lens 3.6mm 2MP IR board lens 2.8mm or 3.6mm 2MP IR board lens 3.6mm 2MP IR board lens
Sync System Internal Synchronization
Electronic Shutter PAL: 1/50 (NTSC: 1/60) -1/100,000 Sec PAL: 1/25 -1/50,000 Sec, NTSC: 1/30 -1/60,000 Sec
S/N Ratio More than 50dB
Day and night Auto (ICR) / Color / B/W
Infrared LED Φ5*12pcs LEDs
IR Distance 5-10m
D-WDR / Support
Noise Reduction / 3D NR
White Balance Auto / Manual
Gain Control Auto
General
Operation Temperature -30°C~+60°C / Less than 95%RH (No condensation)
Power Supply DC12V+/-20%
Cable 60cm power & video cable with Aviation connector

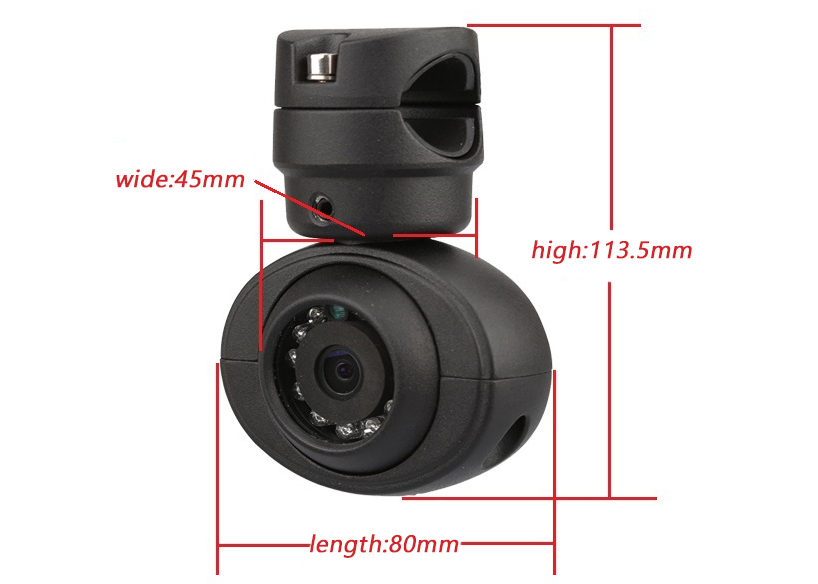

Dimension Φ79*113mm
Housing IP66-rated black color metal case, with Bracket


Application:

  • Outside car camera(inside vehicle installation or outside vehicle installation)
  • Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.

1080P Waterproof Bus Surveillance Camera Front View With Adjustable Bracket For DVR MDVR

1080P Waterproof Bus Surveillance Camera Front View With Adjustable Bracket For DVR MDVR
