1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR

Product Categories
Shenzhen Vanwin Tracking Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR

Brand Name : Vanwin

Model Number : 9204

Certification : CE ROHS

Place of Origin : China

MOQ : 1pc

Price : USD100-USD300

Payment Terms : T/T, Western Union,paypal

Supply Ability : 1000PCS/month

Delivery Time : 3-7 working days

Packaging Details : Carton Box

Product name : 4 channel mobile dvr

Applicable vehicles : bus, trucks

Strong points : Patent shaking-proof HDD protection technology

Strong points 2 : NO HDD box, insert HDD directly

Resolution : 1080P/960P/720P

Storage : HDD+ SD card

Type : 4 channel dvr

Warranty : 1 year

Video input : 4 Channels

Contact Now

HD 1080P 4 Channel Mobile DVR 3G 4G Wifi H.265 Recording System

SPECIFICATION

● Support 4-way 1080P HD Video and 4-way audio
● Support HDD and SD backup
● Support WIFI, WIFI AP, 3G, 4G;
● Through the preset interface, the acceleration sensor, temperature sensor, oil quantity, control panel, LED screen and other peripheral devices can be connected;
● Support IP voice intercom;
● H.264/H.265 encoding and compression
●Specific shock insulation and absorption technology for HDD protection
● Insert harddisk into DVR directly, no need HDD box

PARAMETER

Item parameters
Audio and Video Inputs video input

AHD:4ch 1080/25fps

IPC:Scalable 1-4ch
audio input 4ch audio input
Audio and Video outputs video output Default 1-way CVBS output (VGA output optional)
speech output 1ch audio output
Audio and video parameter coding video coding H.264 Main Profile/H.265
Resolution 1080P/720P/D1 optional
audio coding Default G.726,G.711A optional
storage space HDD 1 2.5-inch optional: SSD/HDD hard disk
SD Support 1 SD card
wireless network 4G Supports 1 SIM card, optional: all major communication modules in the world
WIFI 2.4/5.8G optional
locate mode BD/GPS Support for mixed positioning, speed detection, time synchronization
interface USB USB2.0 interface, support export data, external engineering treasure
serial port Support 2 RS232, 1 RS485, can be connected with external sensor
I/O 4 level inputs, 2 analog inputs, 2 alarm outputs
network interface Support external IPC, support hybrid NVR function
· Intercom 1 special intercom handheld mark interface
Physical Specifications size 176.9mm(L)*186.8mm(W)*54mm(H)
weight

NW:1.4kg

GW:2kg(M51Hv-DGNE1-L as a standard)
work environment operating temperature -20〜+70℃
operating humidity 8%〜90%(No condensation)

Other

 operator schema remote control,APP,WEB
· Gravity sensor Built-in G-Sensor
Configurable AI algorithms Face recognition ,People Counting,ADAS+DMS

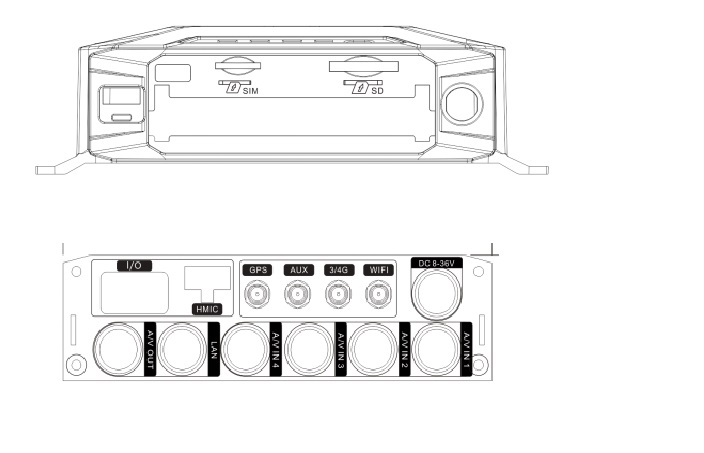

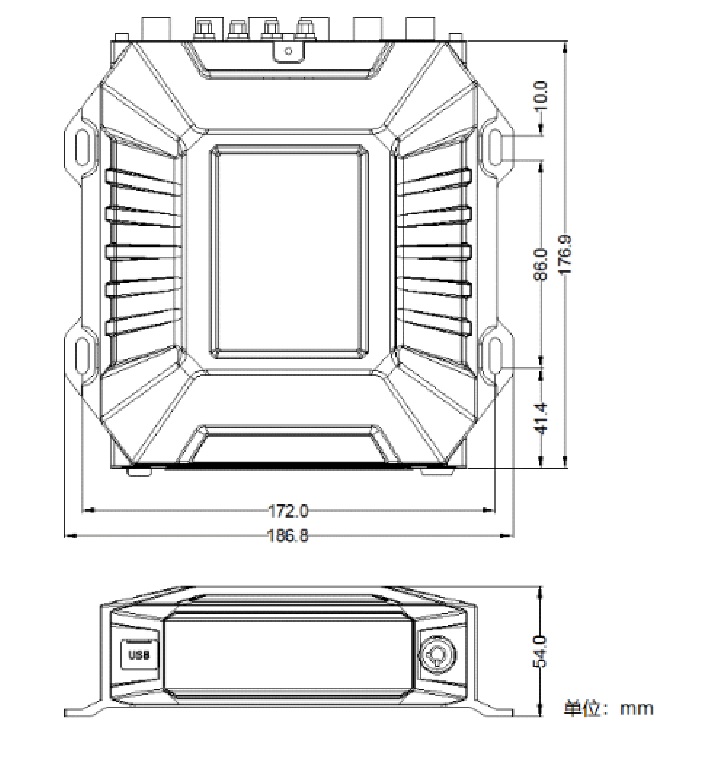

PRODUCT SIZE

1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR

1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR

APPLICATION

1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR

VIDEO STREAMING

1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR1080P4CH 3G 4G Wifi H.265 Armor truck fleet tracking 4 Channel Mobile DVR
