Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

Name: Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
Brand: Vanwin Tracking
Price: 1 USD

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle Manufactures

Brand Name : Vanwin Tracking

Model Number : VW-C532

Certification : CE/FCC/RoHS

Place of Origin : Shenzhen, China

MOQ : 5pcs

Price : negotiated

Payment Terms : Western Union, T/T, Paypal

Supply Ability : 5,000pcs per month; Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

Delivery Time : 1-2 days for samples, 3-10 days for large orders

Packaging Details : Neutral carton box package by default;

Type : Rear view camera

Resolution : CMOS 480 TV Lines

TV system : PAL or NTSC

Voltage : DC12

Car Make : Universal, for any car

View angle : 170 degree

Image sensor : HD 7440H 0R 7070D 1/4"CMOS

Warranty : 12 months

Contact Now

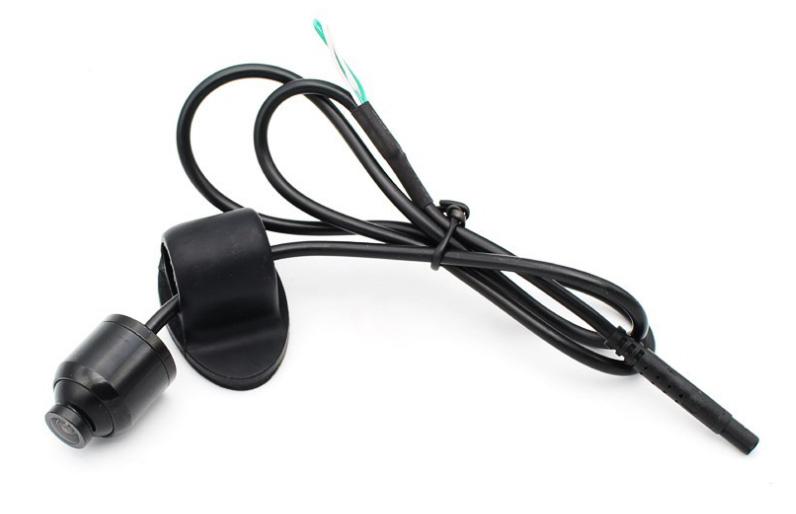

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

Main Features:

Image Sensor: HD 7440H 0R 7070D 1/4" CMOS
TV system: NTSC/PAL for optional
Effective Pixels: PAL: 628(H)*582(V) NTSC: 510(H)*492(V)
Lens: 13.5mm F 1.9MM 5G
View Angle: 150 degree
S/N Ratio: >48dB
Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
Video Output: 1.0Vpp, 75Ω
White Balance: Auto
Power: DC 12V
Waterproof: IP68
Package weight: 178g

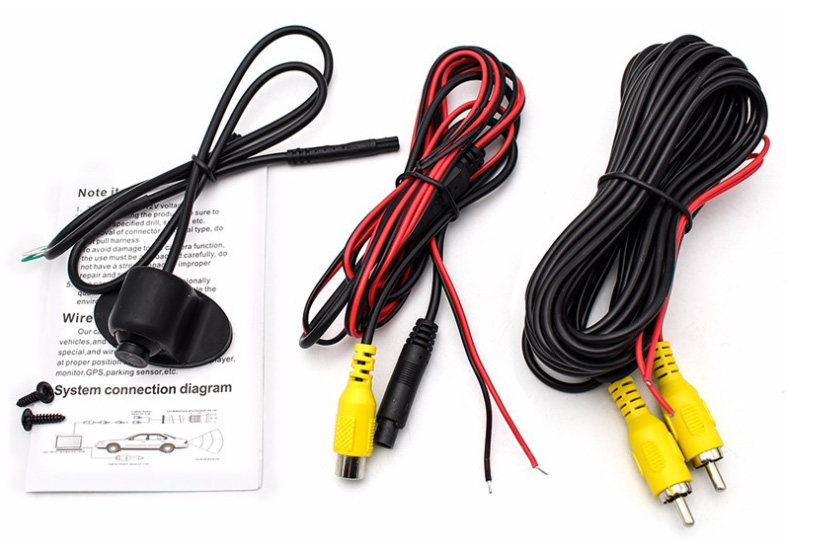

The package includes:

1 x Car Rear View Camera
1 x Video Cable
1 x Power Cable
1 x English user menu
The 3M sticker and screws

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

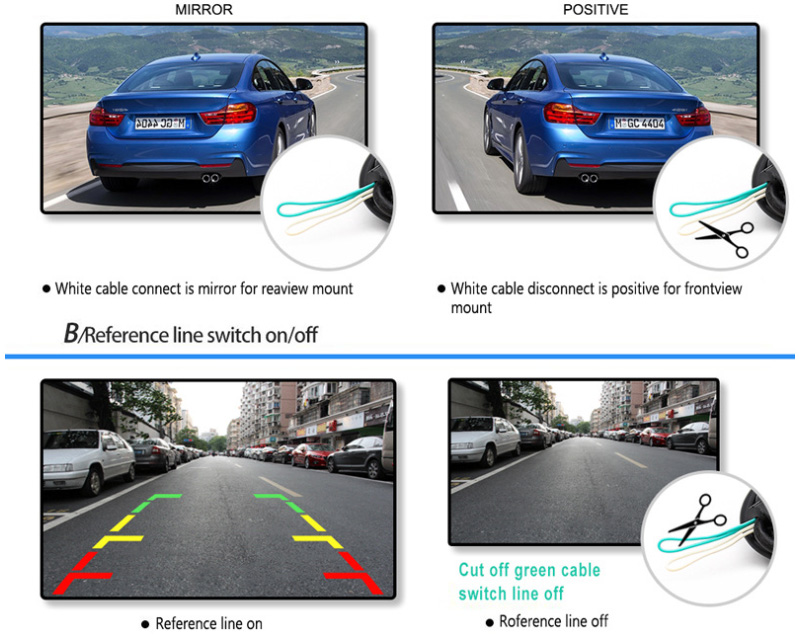

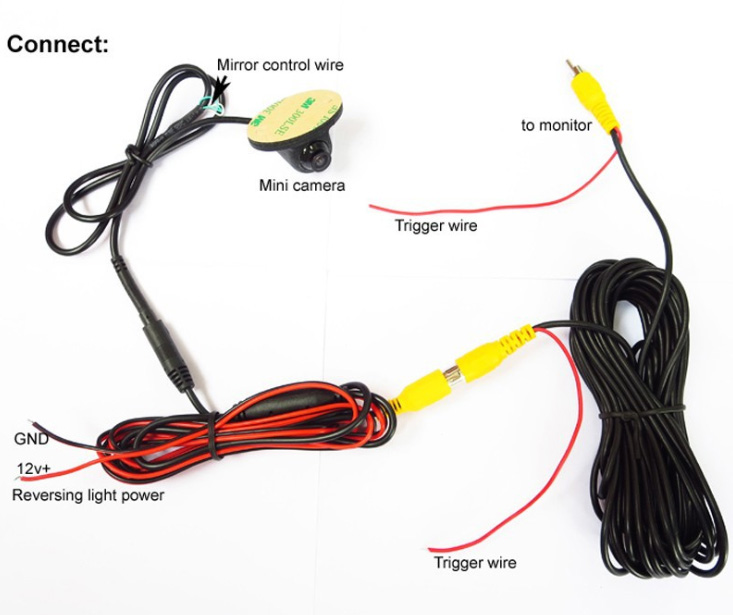

Guideline Adjustable

The green wire is controling parking line

The white wire is controling the mirrior image

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle

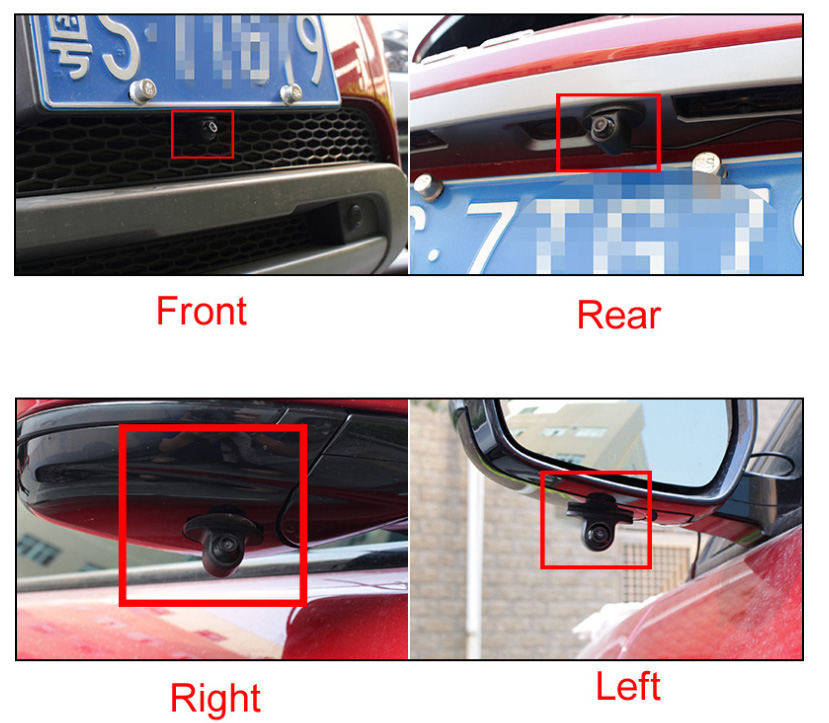

The installing Paces as reference

Small Car Reversing Hidden Camera CMOS 480 TV Lines Resolution Wide Angle
